Mini Power Distribution Board With BEC 5V And 12V For 250-Free Test

[stacytoydrone]

Hi, everyone, if this post break the rule, just delete it. Thanks.
Our company provide recently has this new product. Does anyone help us to test and review this product?

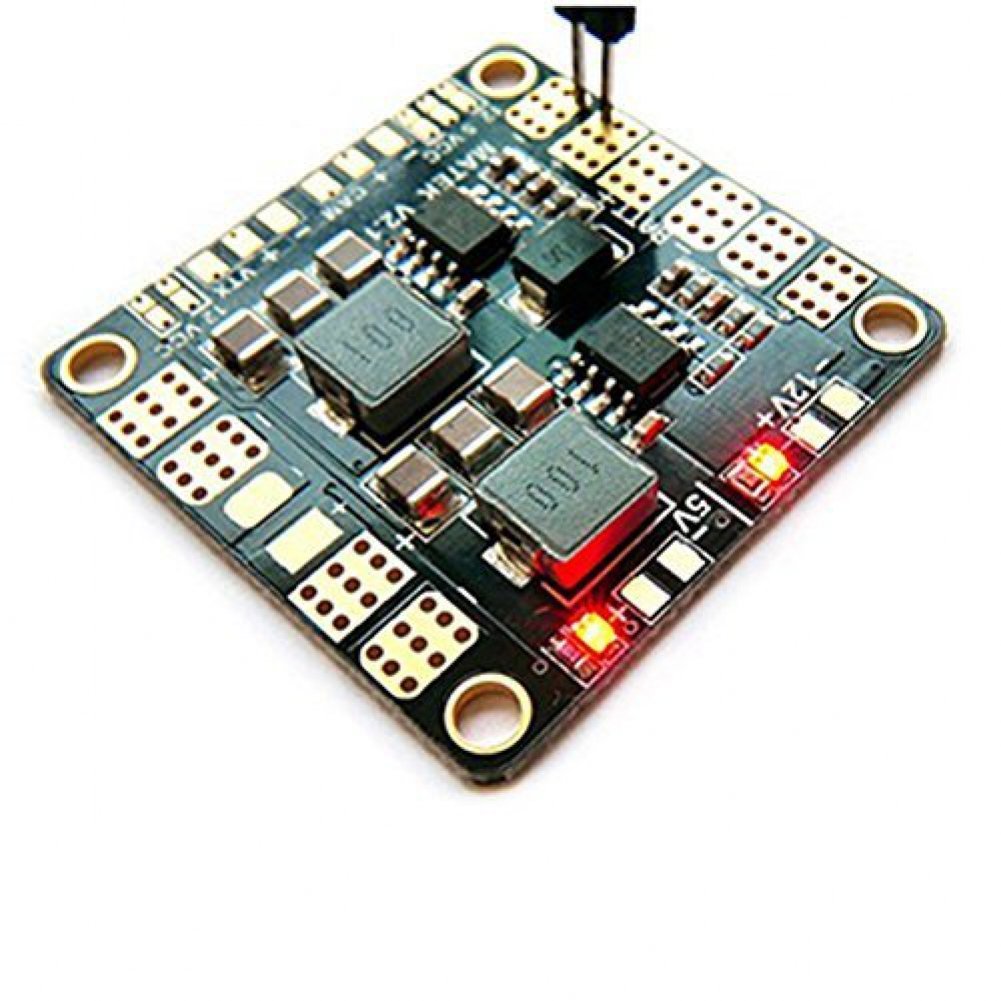

REALACC Matek Mini Power Distribution Board With BEC 5V And 12V For 250 Quadcopter FPV Multicopter

Description:
Dimensions: 36 x 36mm
Weight: About 6g
Mounting holes 30.5mm square spacing
nput voltage range (2S-6S operation): 7.2 - 26VDC
Regulated 5V and 12V outputs
LED power indicators ( 5V & 12V outputs )
4 ESC outputs

ESC outputs:
Continuous current: 20A per output
Peak current (10 seconds/minute): 30A per output

BEC 5V output:
Designed for RC Receivers, Flight controllers, OSD, and Servos.
Voltage: 5.0 +/- 0.1VDC
Continuous current: 3 Amps Short-circuit tolerant (10 seconds/minute)
LED (indicates voltage is in regulation, within 10%)

BEC 12V output:
The battery should be 4S~6S LiPo
Standard output designed to power cameras and video transmitters,etc.
Voltage: 12.0 +/- 0.2VDC
Continuous current: 2 Amps (Max.3A 10s/minute)
Short-circuit tolerant (10 seconds/minute)
LED (indicates voltage is in regulation, within 10%)

CAM & VTX voltage bridge:
3S operation. choose “VCC” for 12V camera & 12V VTX, VCC=Battery Voltage.
4~6S operation, choose “12” for 12V camera & 12V VTX
3~6S operation, choose “5” for 5V camera
Video pass through from the “CAM” pad to the “VTX” pad

Package Included:
1 x Matek Mini Power Distribution Board

If you are interested in test this product, feel free to email me: [email protected]



[VirtueViolater]

I'm currently using two of these on 2 of my builds and have had no problems what-so-ever. I highly recommend these for builds up to 4s. Anything over 4s I haven't tried



[stacytoydrone]

I'm currently using two of these on 2 of my builds and have had no problems what-so-ever. I highly recommend these for builds up to 4s. Anything over 4s I haven't tried

This PDB has about everything you need, selectable voltage for both VTX and Camera, regulated and filtered 5V and 12V outputs, fits nicely underneath your Flight Controller and solder pads seem sturdy.



[stacytoydrone]

If you are interested in test this product here, feel free to email me: [email protected]
